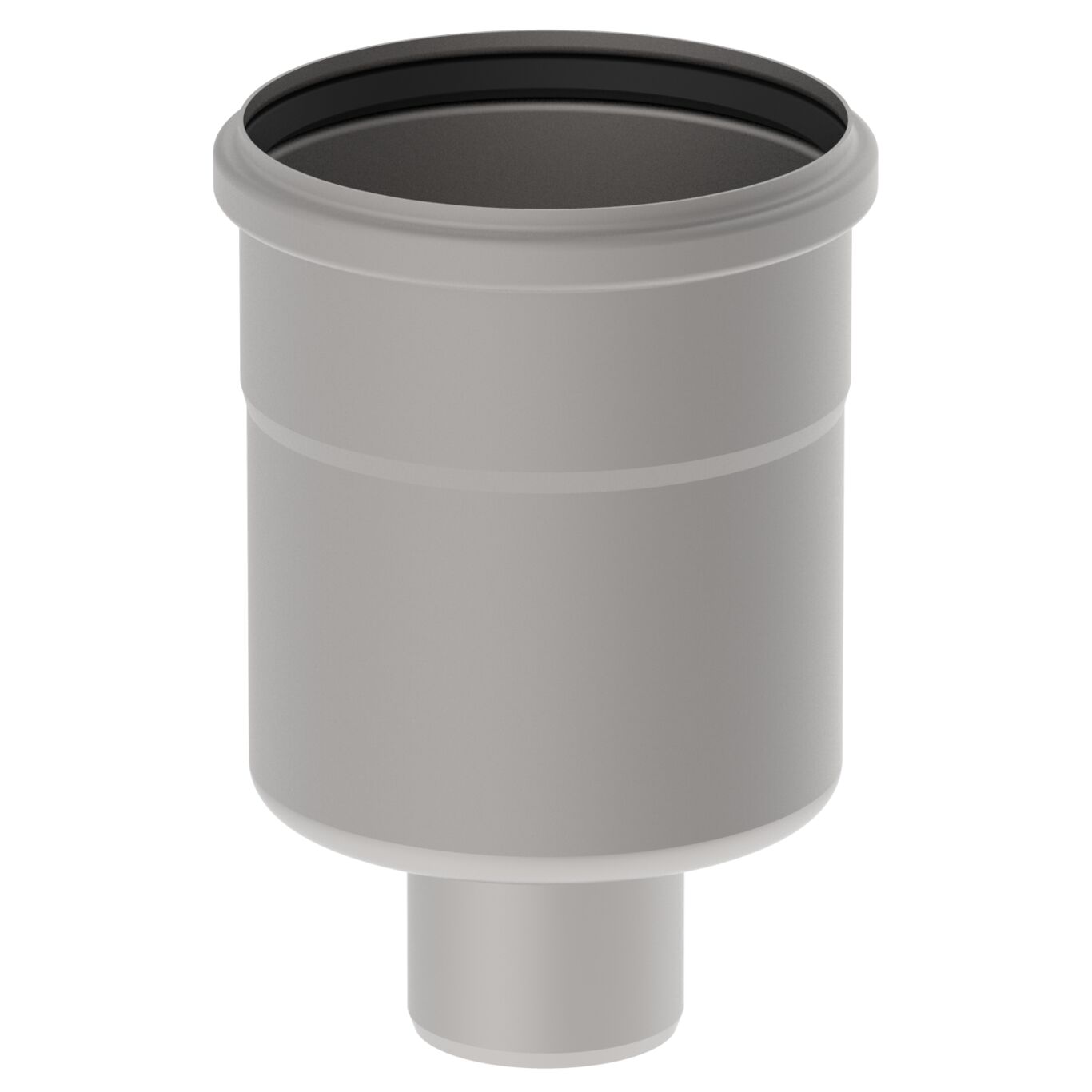

LOWER PART - (760.160.075)
×
![]()
Part Of the Series: Lower part-160
Type no.: 760.160.075
EAN no.: 5705499138016
RSK no.: 7121870
NRF no.: 3397186
LOWER PART
-No membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |

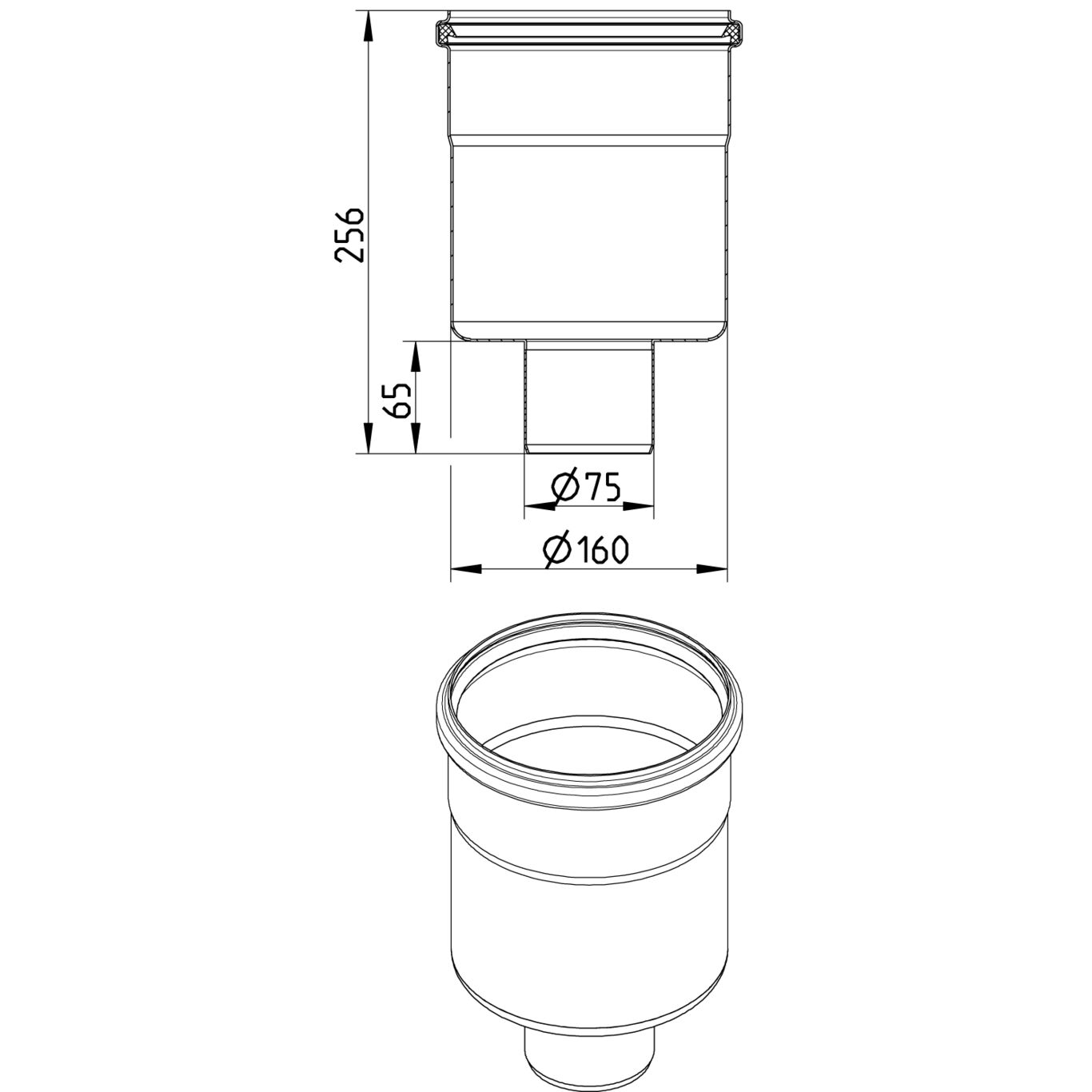

| Minimum Height (mm) | 256 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
