UPPER PART - (774.502.000)

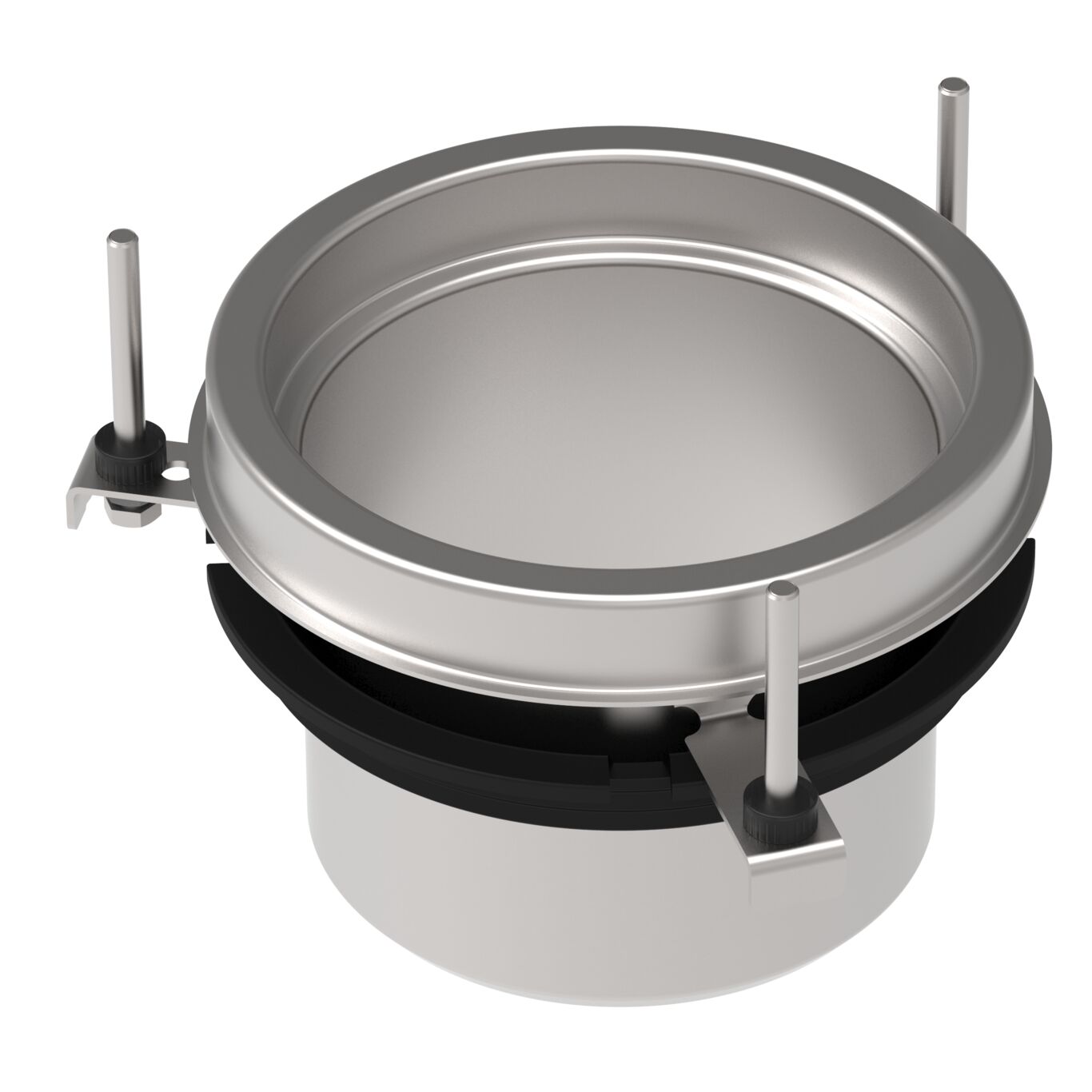

Product Image - Upper part-Gastight

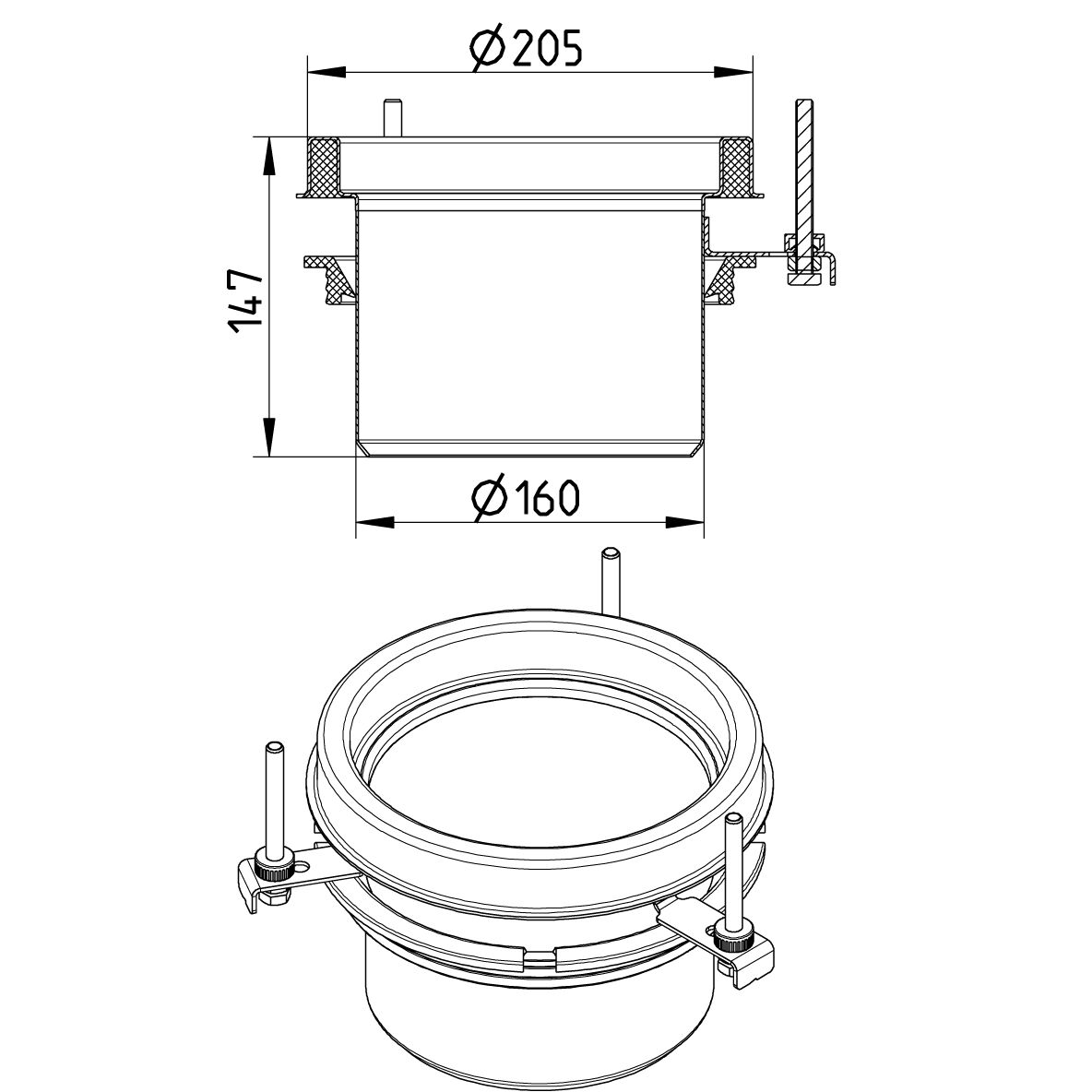

Line Drawing - Upper part-No membrane-205
×

Part Of the Series: Upper part-No membrane-205

Type no.: 774.502.000

EAN no.: 5705499112337

LVI no.: 3303838

Size: Ø205

UPPER PART
-Floor: resin
-Frame: Ø205mm
-Stainless steel: AISI304/EN1.4301

Product Specification
Floor Resin
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 147
Number of Screw Holes 0
Outlet Diameter (mm) 160
Shape Round
Size (mm) Ø205
Weight (kg) 2,22
