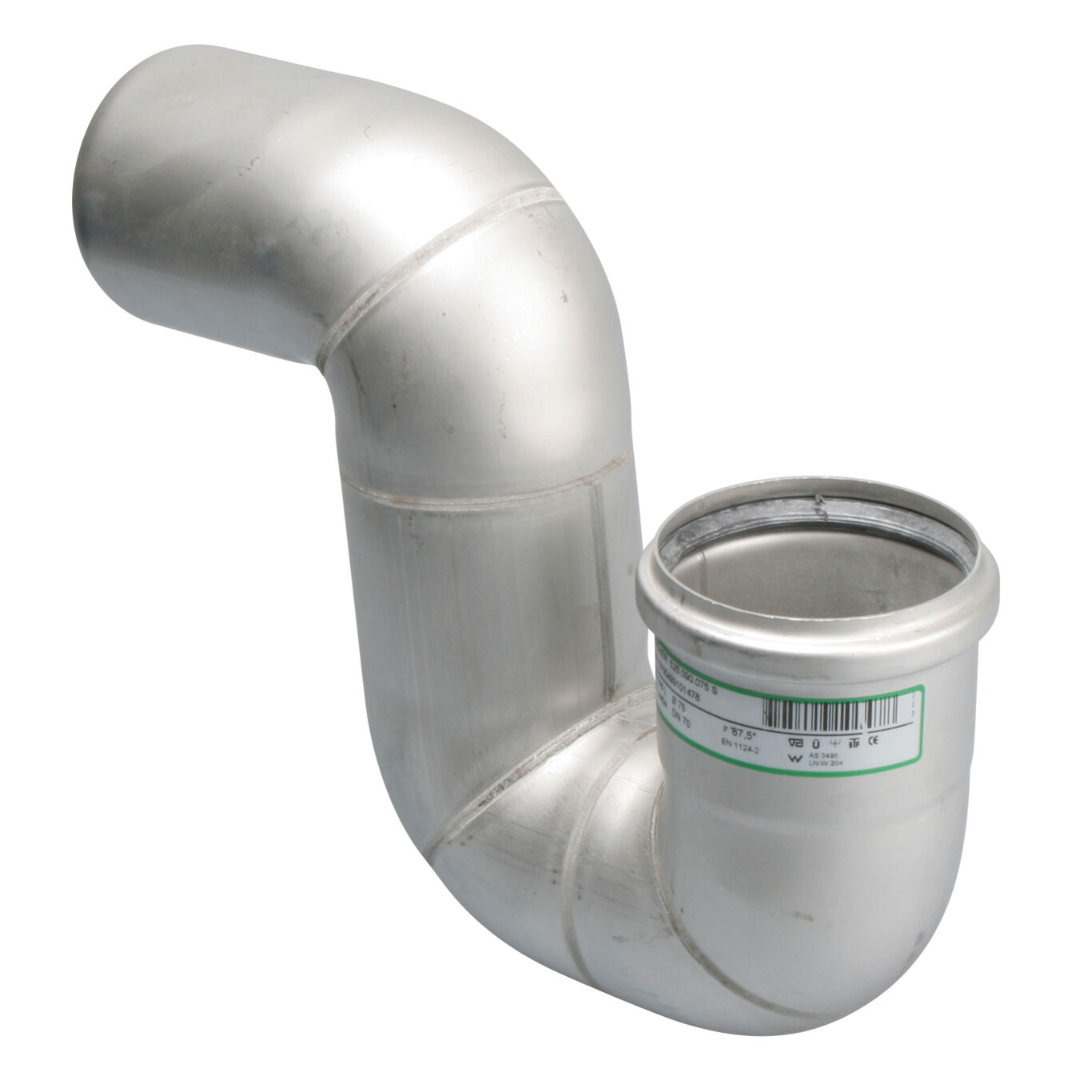

P-TRAP 87.5° - (525.090.075 S)
×
![]()
Part Of the Series: Water trap-p
Type no.: 525.090.075 S
EAN no.: 5705499101478
VVS no.: 160381375
RSK no.: 1550346
NRF no.: 3395042
LVI no.: 3304020

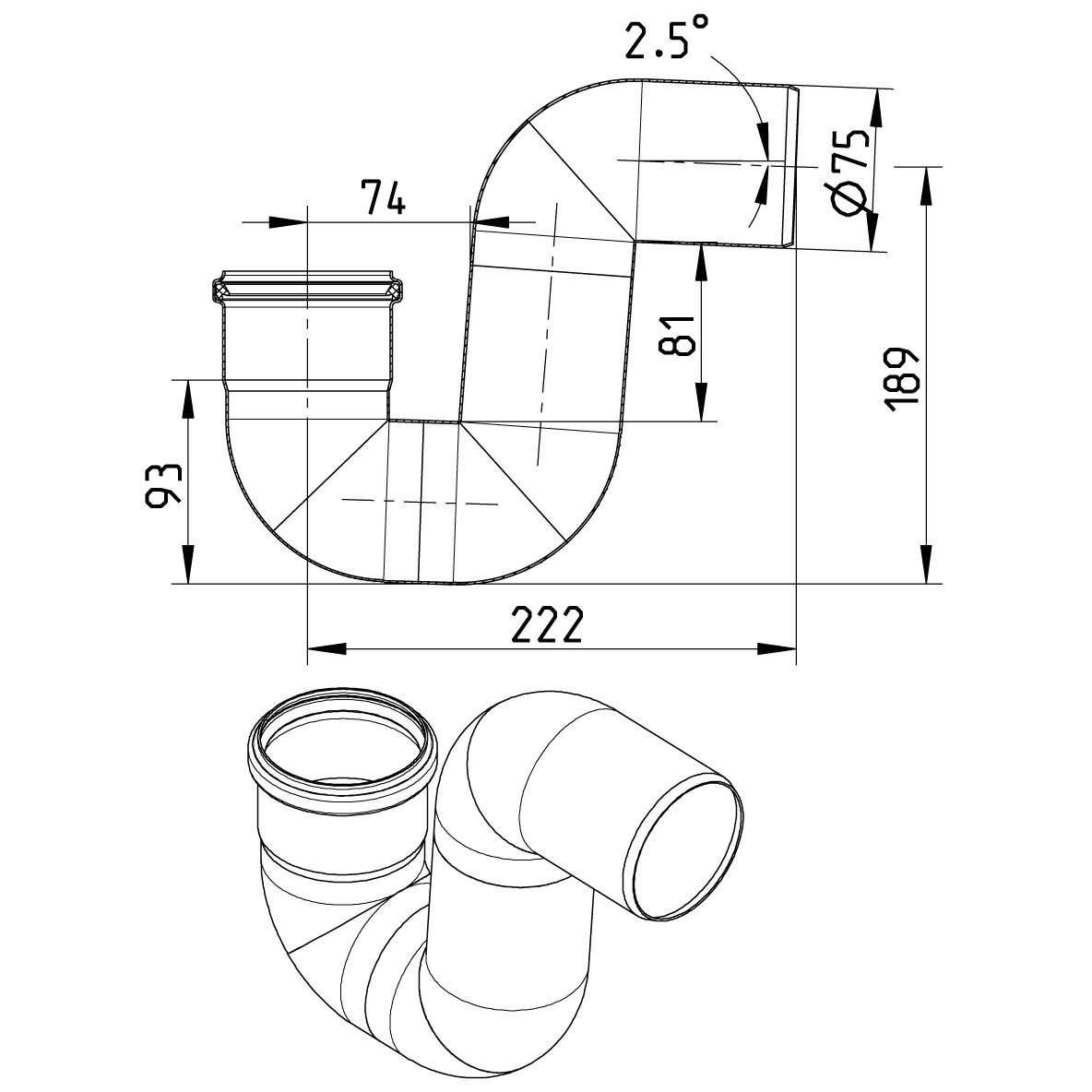

P-TRAP 87.5°
-Diameter: Ø75mm
-Water seal height = 81mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 93 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 3.7 |
| Minimum Flow (l/s) | 2.5 |
| Outlet Diameter (mm) | 75 |
| Water Seal Height (mm) | 81 |
| Weight (kg) | 0,84 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
TÜRK LOYDU - 25041616077231247
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
DK VA 2.41/19631
DE - TÜV Rheinland R 60178453 0001
HACCP Food Safety Programme - Europe
