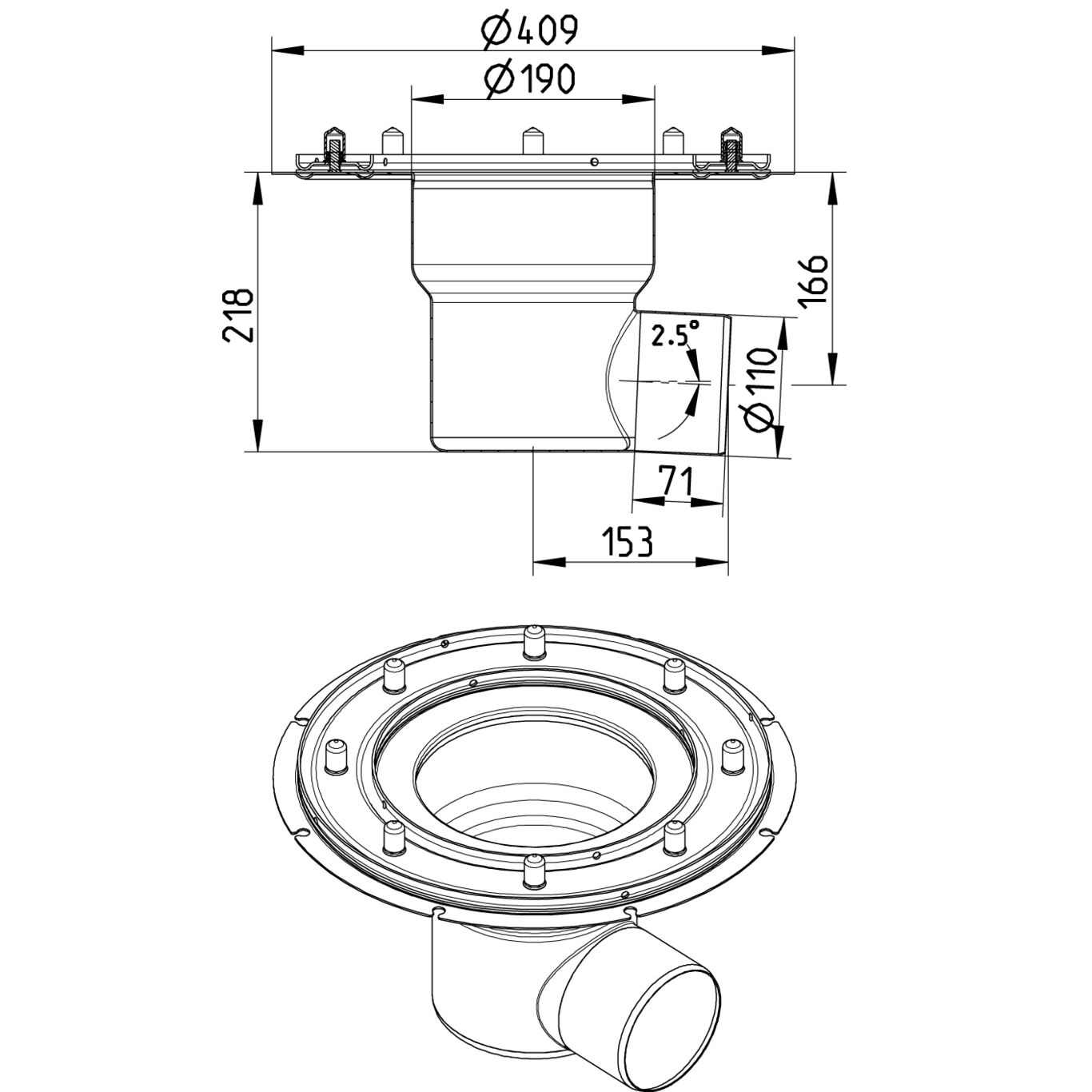

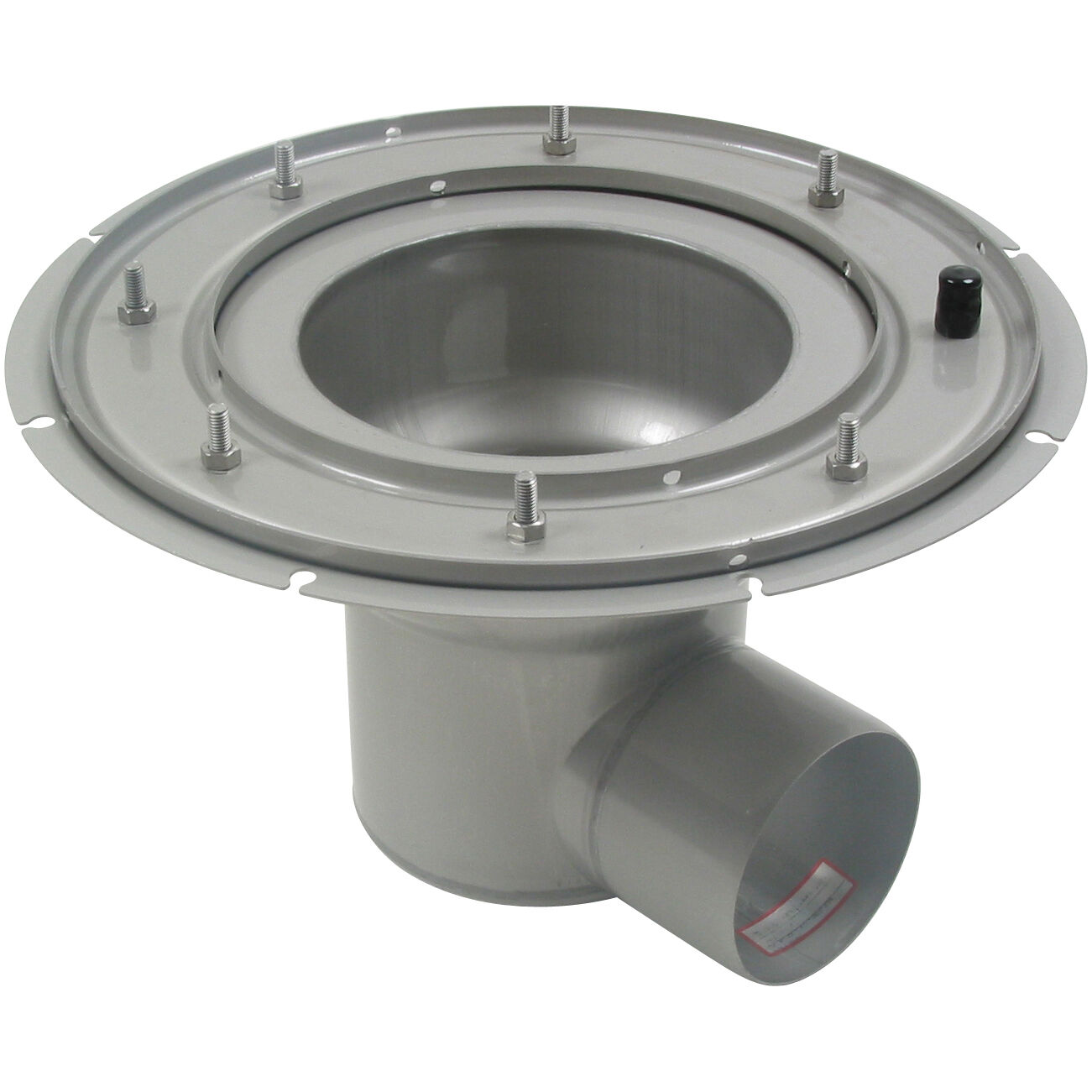

LOWER PART - (771.002.110)
×
![]()
Part Of the Series: Lower part-160
Type no.: 771.002.110
EAN no.: 5705499111248
NRF no.: 3396335
LVI no.: 3303783
LOWER PART
-Sheet membrane flange
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Sheet Membrane |
| Minimum Height (mm) | 218 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Weight (kg) | 4,88 |
-
Downloads
- DWG - 771.002.110
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approval Information
For approval information, please refer to the below approval certificates.
