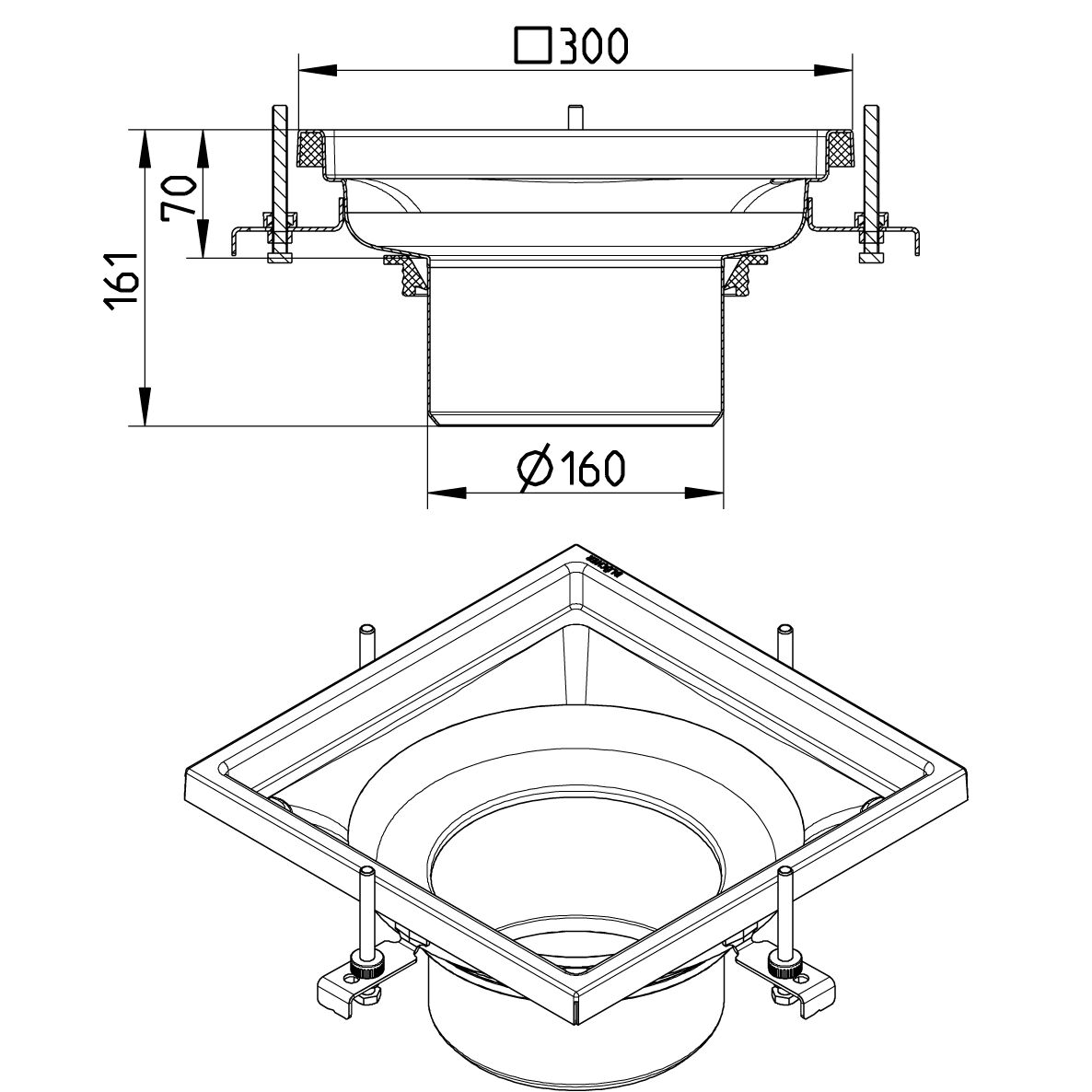

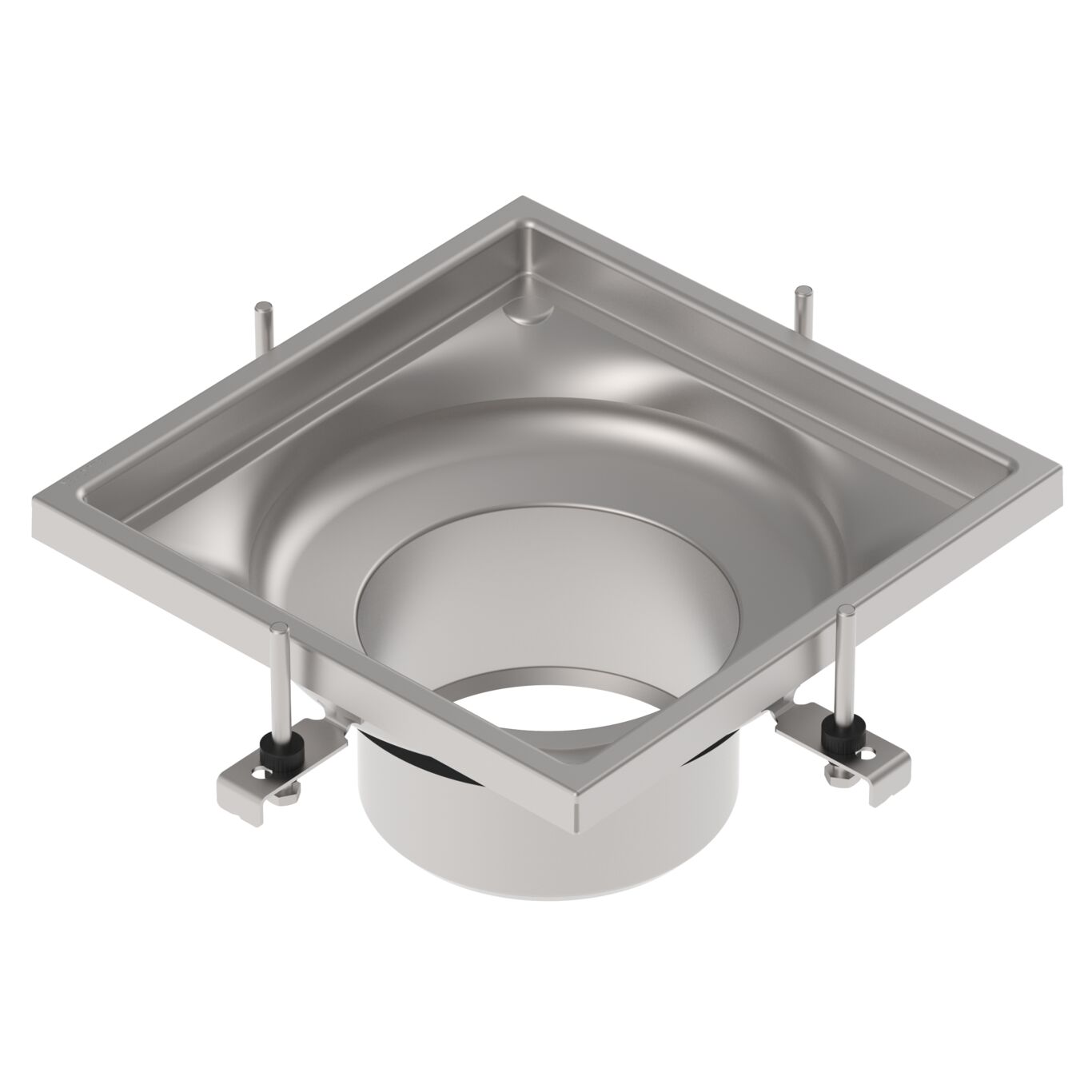

UPPER PART - (710.403.000 S)
×
![]()
Part Of the Series: Upper part-No membrane-300
Type no.: 710.403.000 S
EAN no.: 5705499108217
VVS no.: 153018318
LVI no.: 3303810
Size: 300x300
UPPER PART
-With supporting ring for water trap
-Floor: concrete and tiled
-Frame: 300x300mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 160 |
| Shape | Square |
| Size (mm) | 300x300 |
| Weight (kg) | 3,18 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
