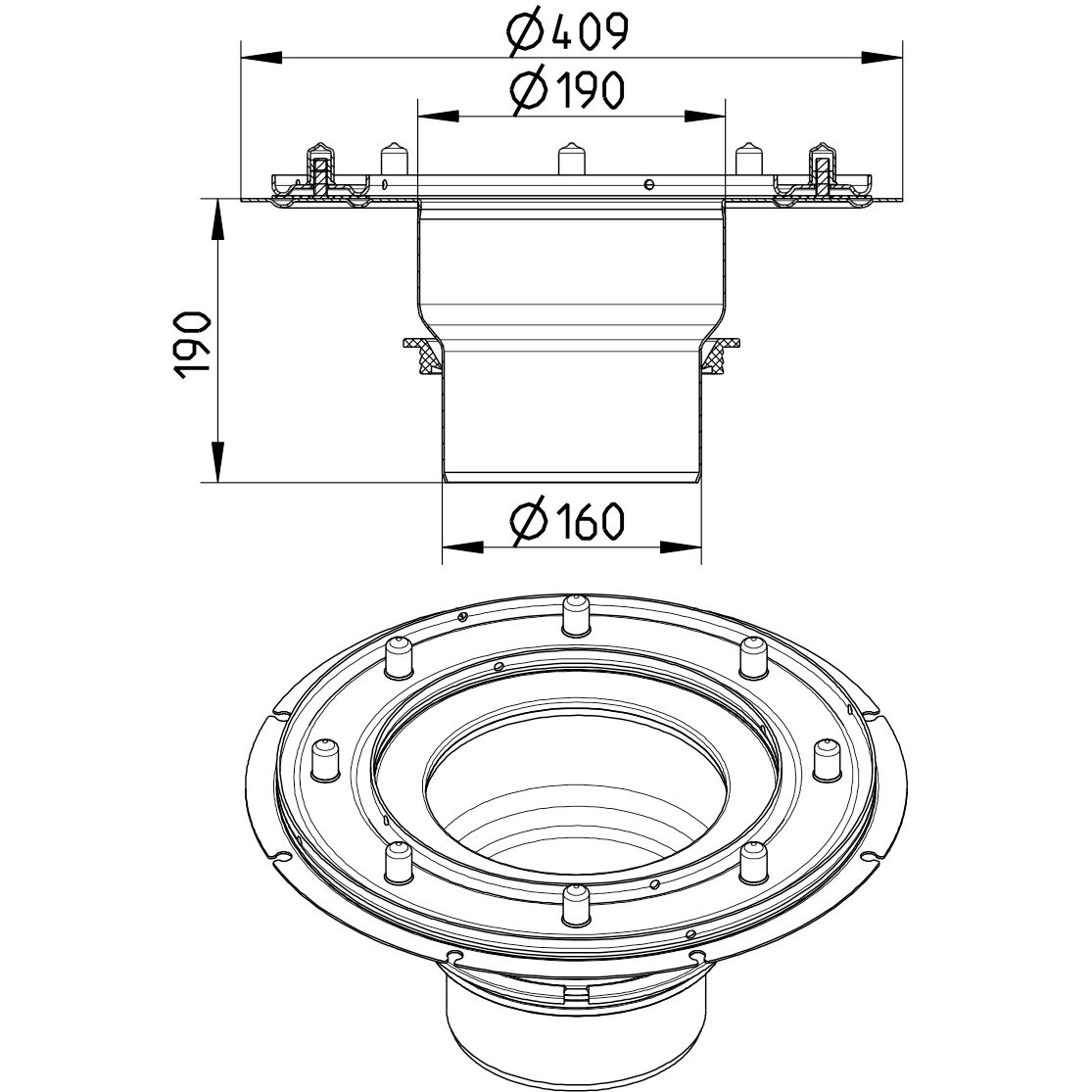

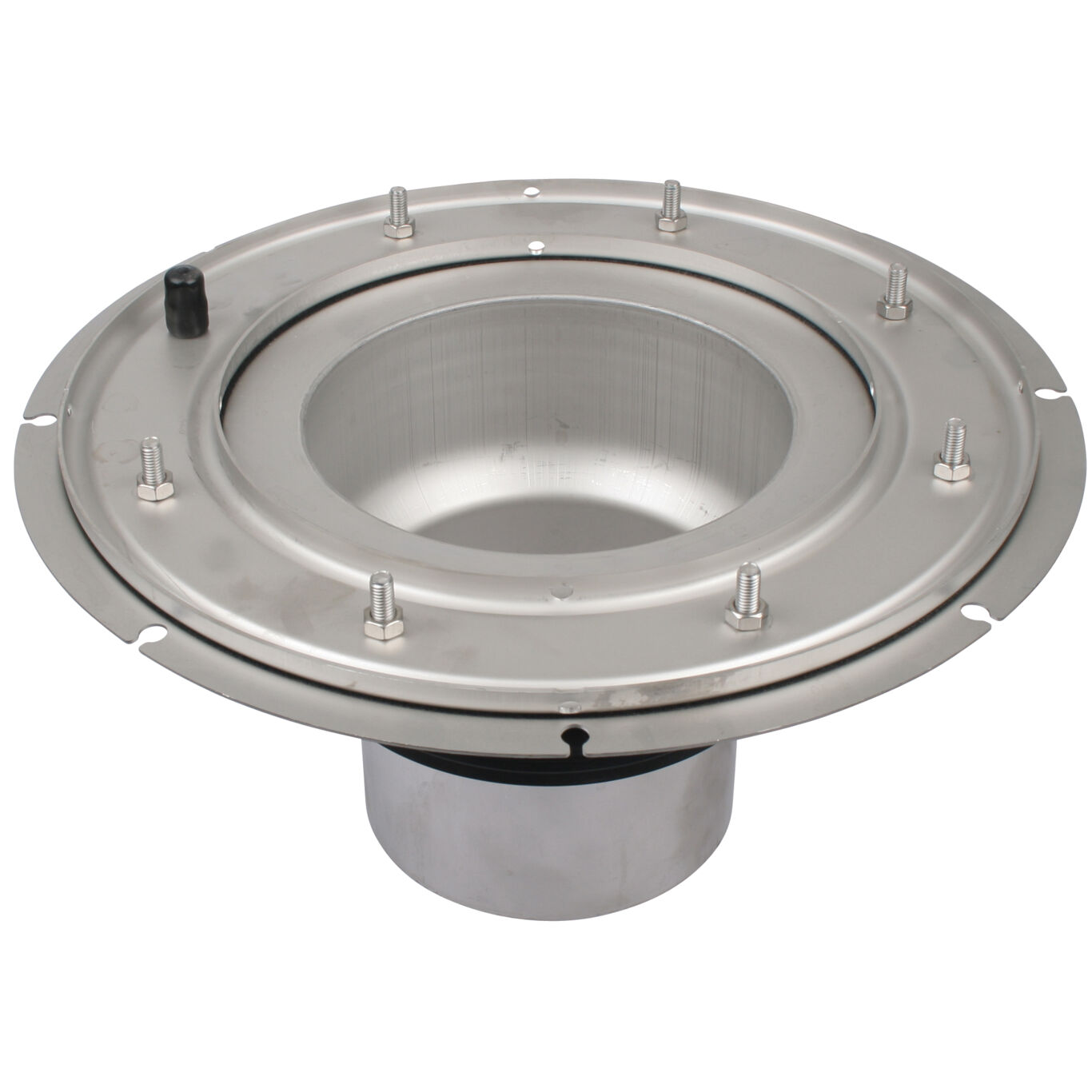

INTERMEDIATE SECTION WITH CLAMPING FLANGE - (779.002.000 S)
×
![]()
Part Of the Series: Intermediate section
Type no.: 779.002.000 S
EAN no.: 5705499113143
VVS no.: 153019648
LVI no.: 3303870
INTERMEDIATE SECTION WITH CLAMPING FLANGE
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 190 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 4,41 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
