UPPER PART - (774.402.000.01 S)

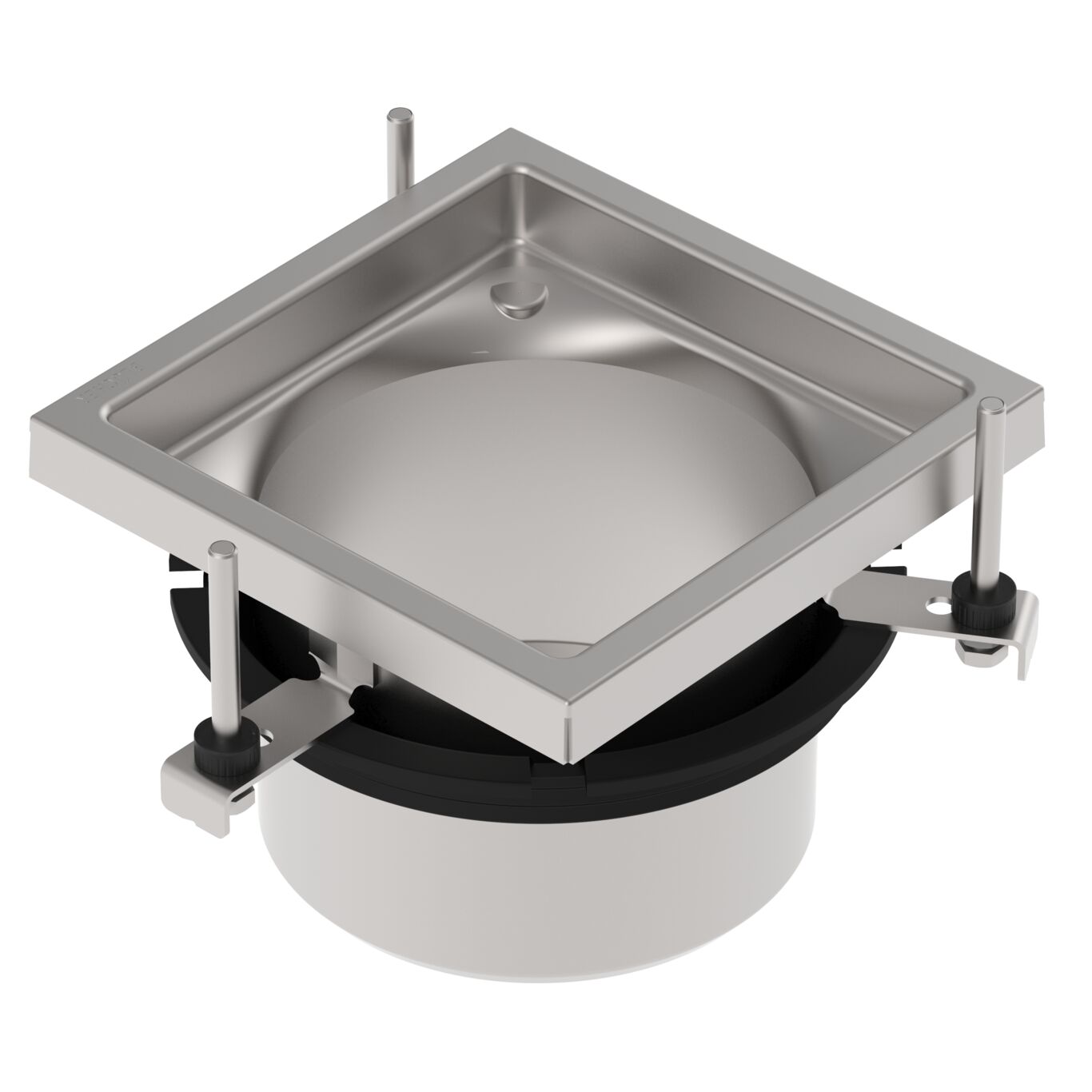

Product Image - Upper part-No membrane-250

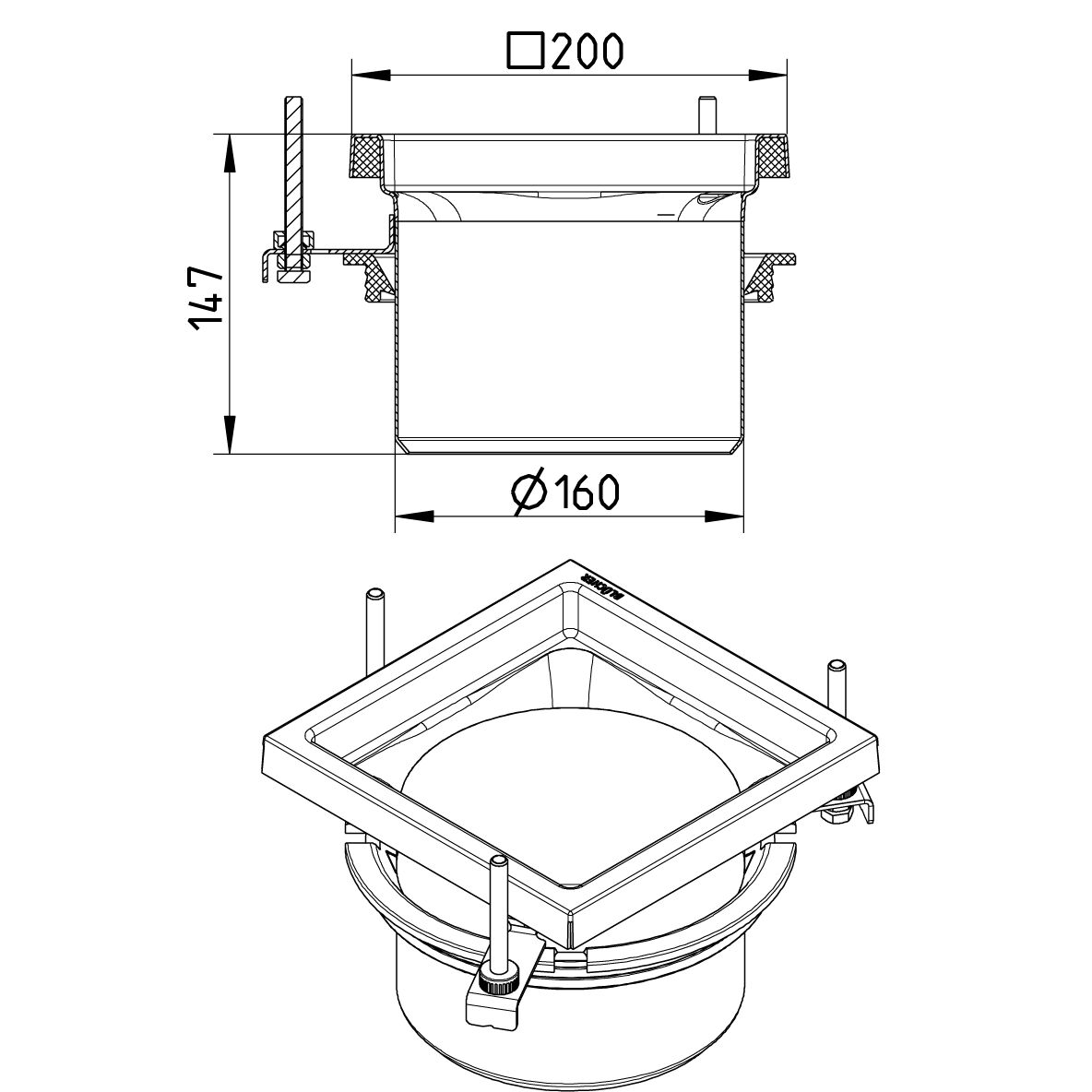

Line Drawing - Upper part-No membrane-200
×

Part Of the Series: Upper part-No membrane-200

Type no.: 774.402.000.01 S

EAN no.: 5705499112016

Size: 200x200

UPPER PART
- With screwlock
- Floor: concrete and tiled
- Frame: 200x200mm
- Stainless steel: AISI316L/EN1.4404

Product Specification
Floor Concrete / Tiled
Material AISI 316L
Material (EN) EN 1.4404
Number of Screw Holes 1
Outlet Diameter (mm) 160
Shape Square
Size (mm) 200x200
Weight (kg) 1,85
