UPPER PART - (774.602.000 S)

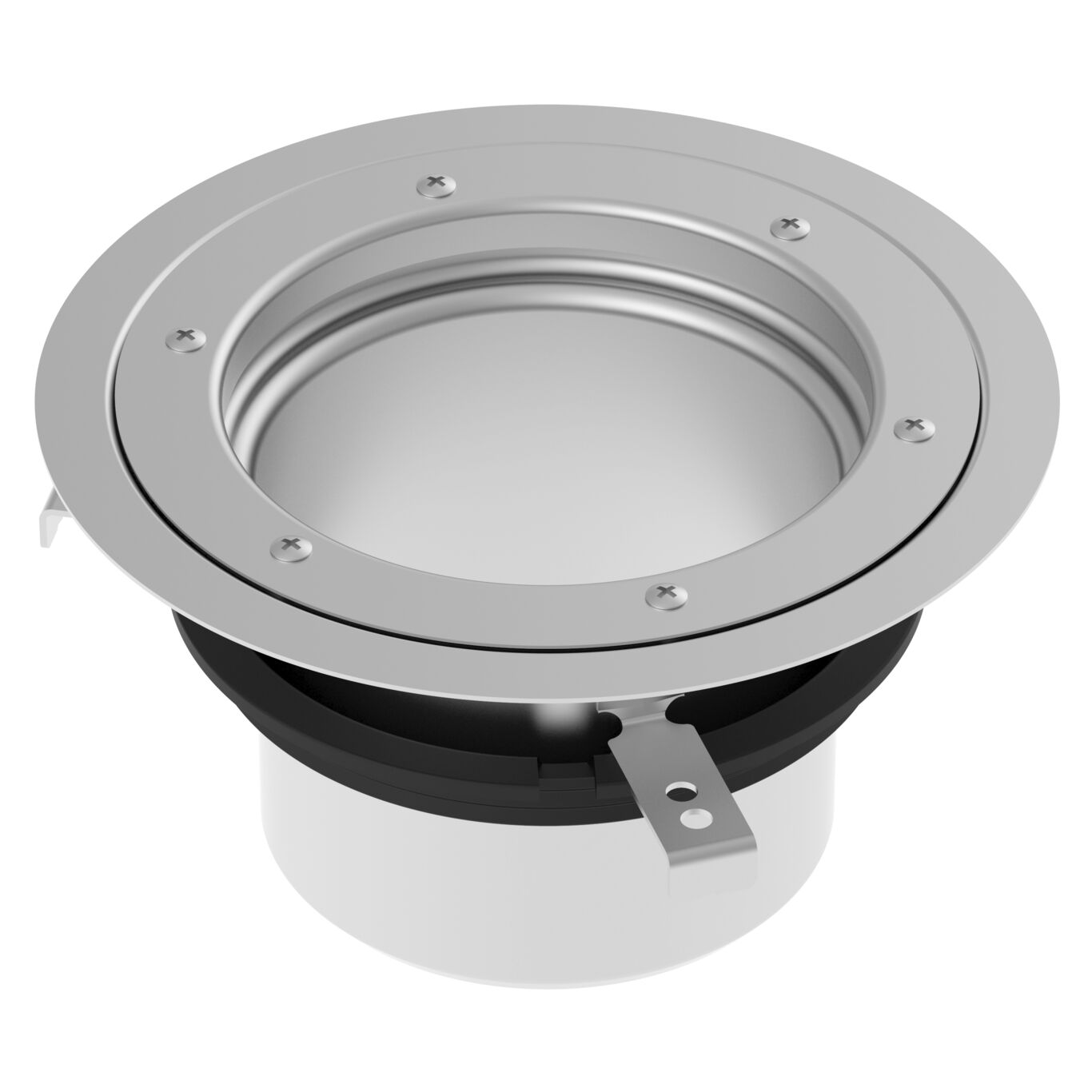

Product Image - Upper part-No membrane-305

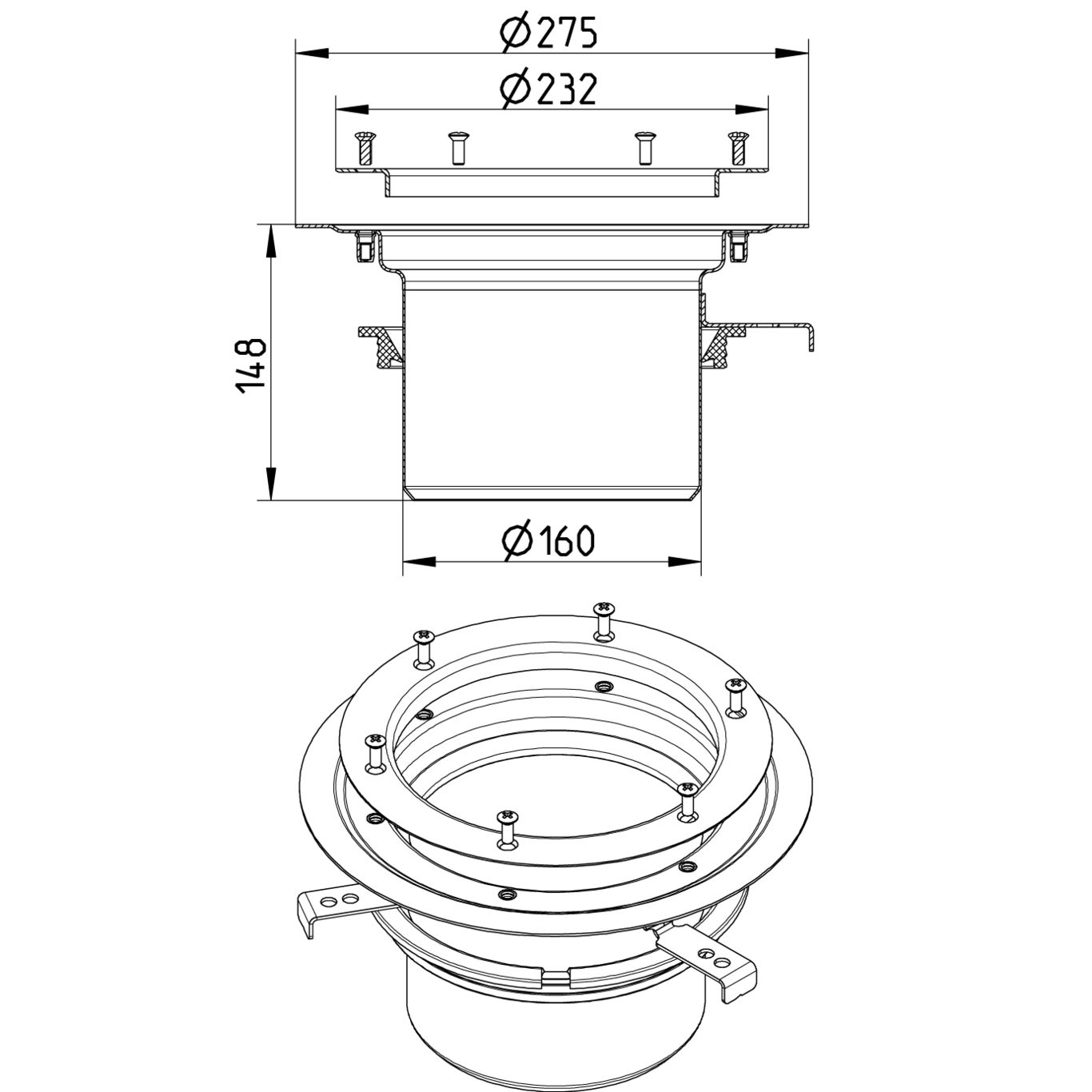

Line Drawing - Upper part-Vinyl-232
×

Part Of the Series: Upper part-Vinyl-232

Type no.: 774.602.000 S

EAN no.: 5705499112504

VVS no.: 153038146

LVI no.: 3303847

Size: Ø232

UPPER PART
-Floor: vinyl
-Frame: Ø232mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Floor Vinyl
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 148
Number of Screw Holes 0
Outlet Diameter (mm) 160
Shape Round
Size (mm) Ø232
Weight (kg) 2,02
