LOWER PART FOR ROOF DRAIN - (403.000.050)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 403.000.050
EAN no.: 5705499141405
VVS no.: 164122550

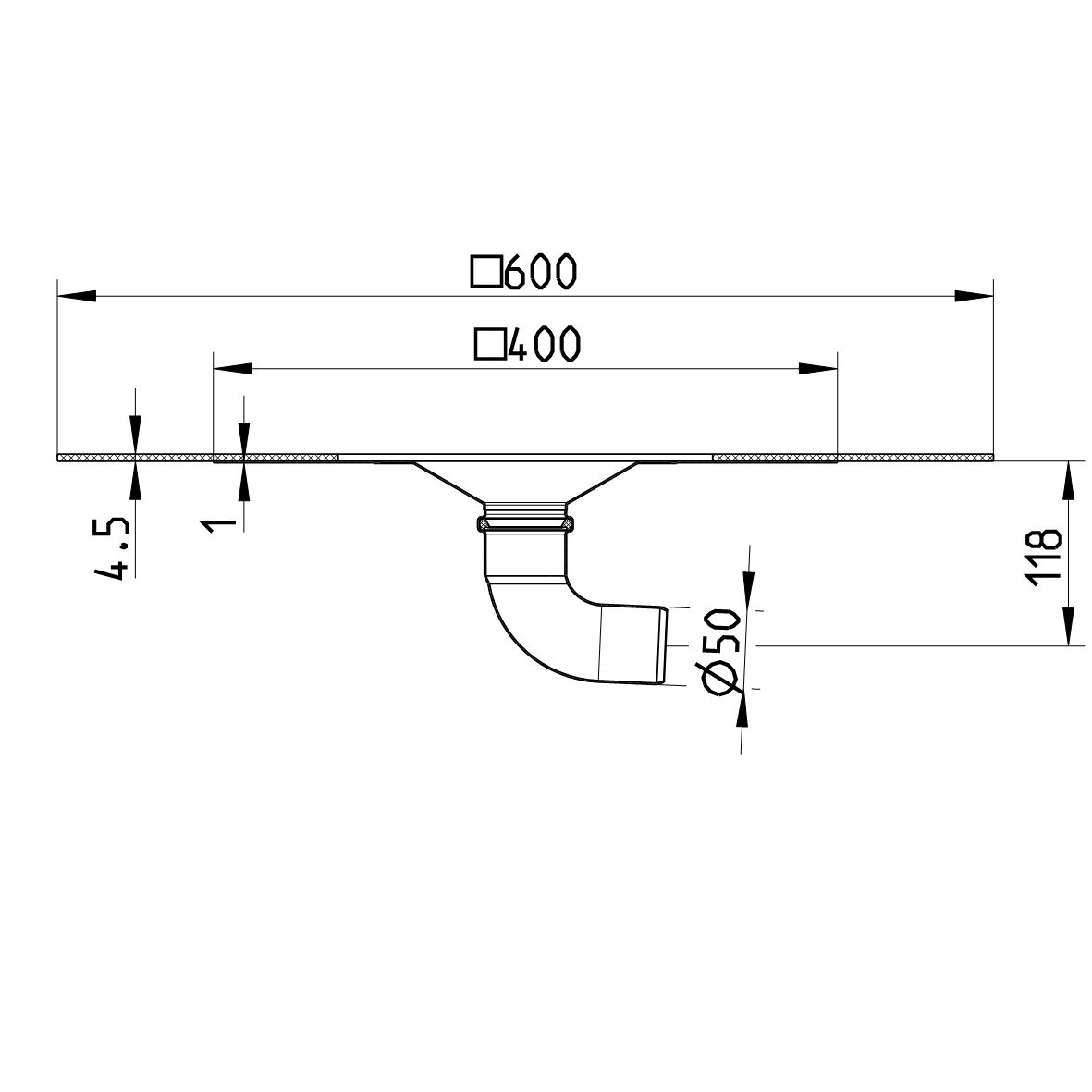

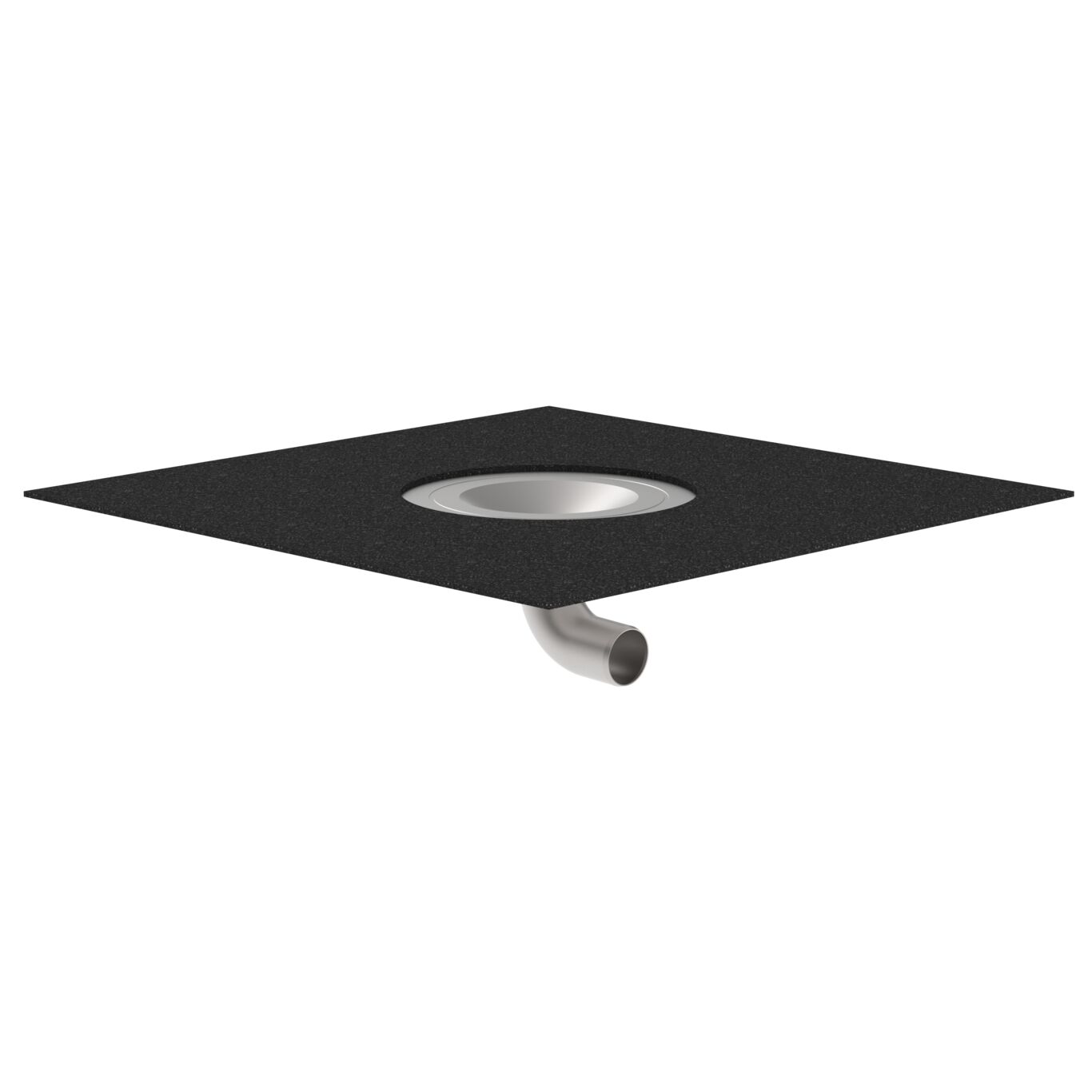

LOWER PART FOR ROOF DRAIN
- With pre-mounted bitumen collar
- Roof: Bitumen
- Flange: 400x400mm
- Outlet: Ø50mm, horizontal
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Roof | Bitumen |
| Weight (kg) | 3,03 |
-
Approval Information
For approval information, please refer to the below approval certificates.
