ART DECO TRAP - (513.000.050 PP)
×
![]()
Part Of the Series: Water trap-Shower channel
Type no.: 513.000.050 PP
EAN no.: 5705499139587
VVS no.: 155099015
RSK no.: 7110813
NRF no.: 3394672
LVI no.: 3305834

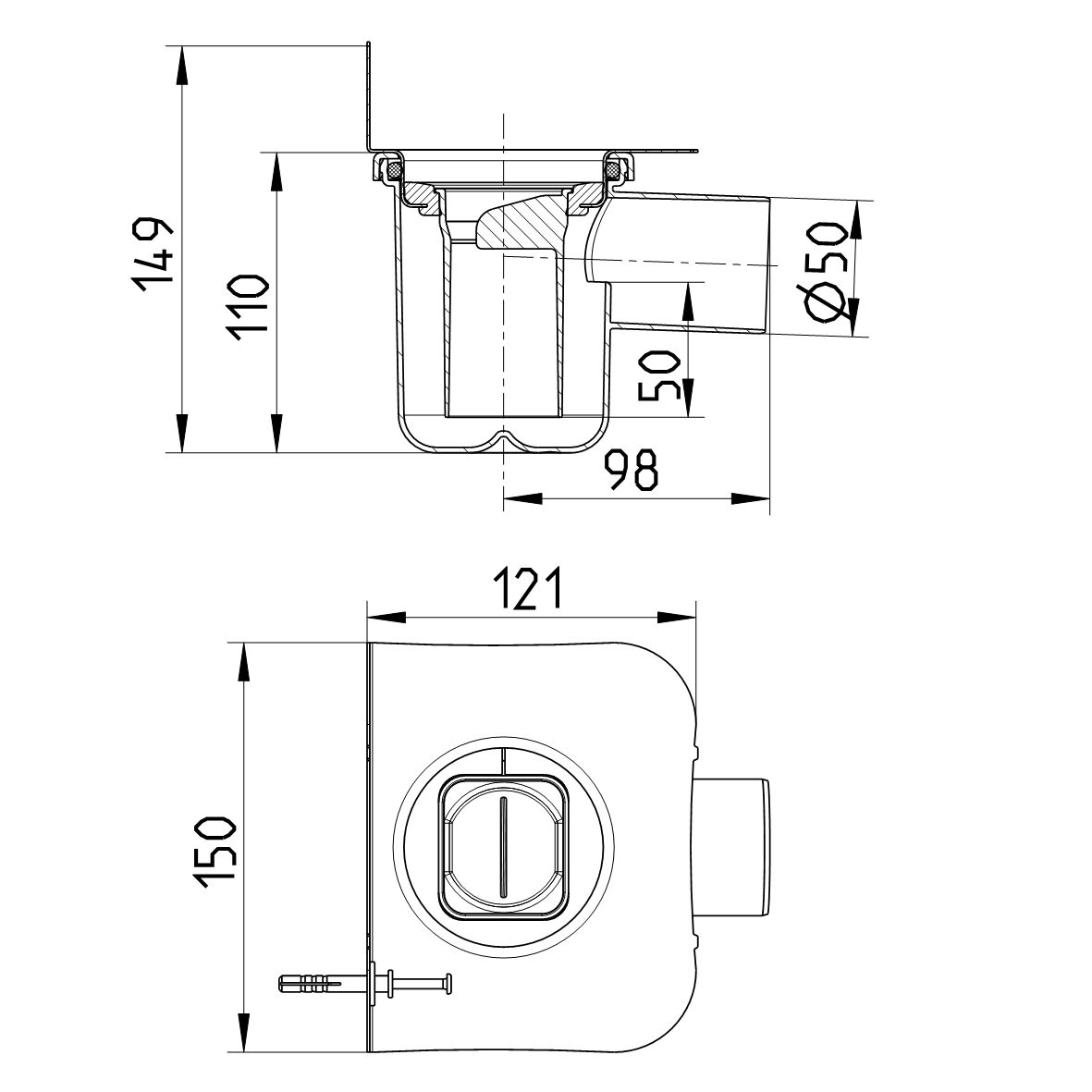

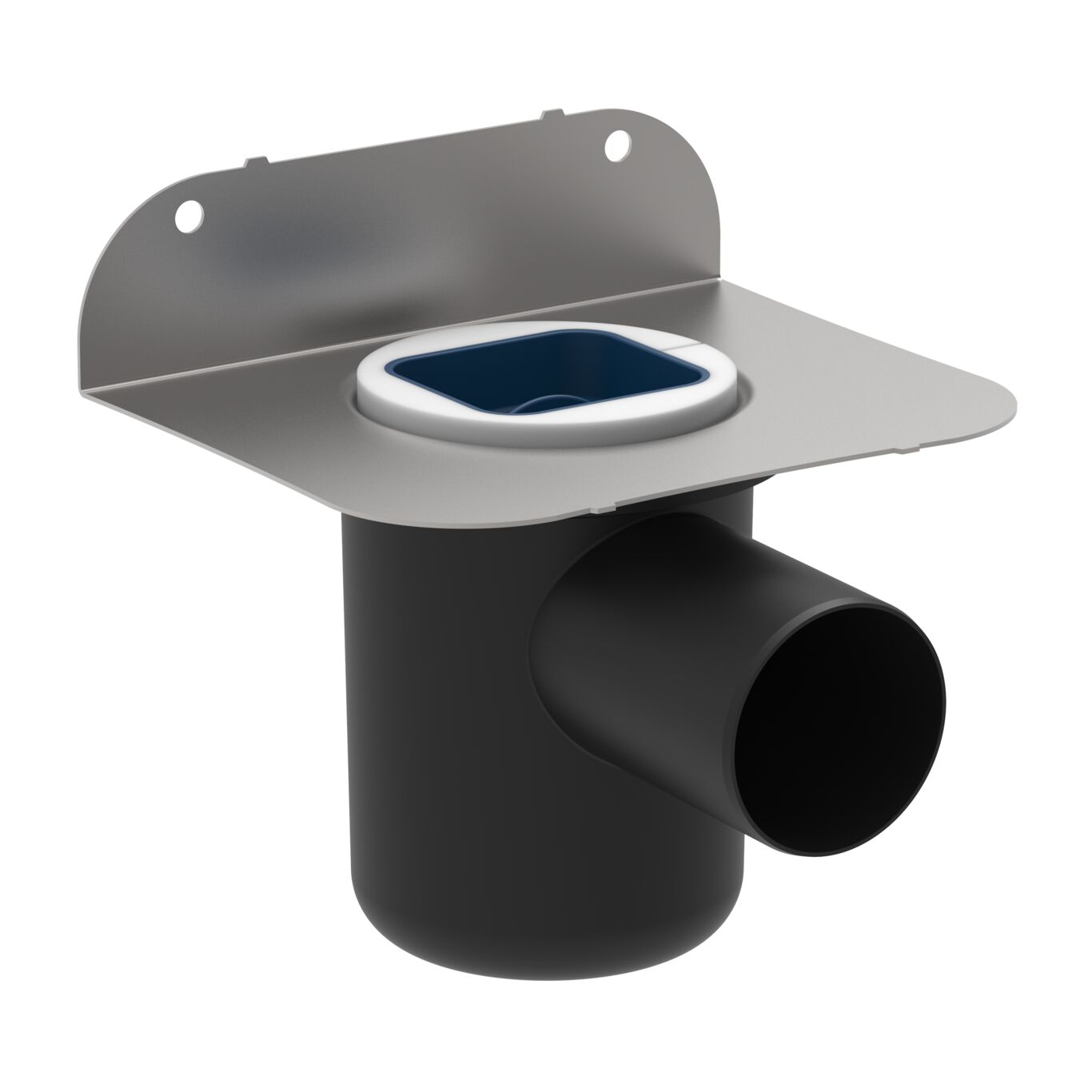

ART DECO TRAP
- To be built in, no retro-fitting
- Liquid membrane
- Outlet: Ø50mm, horizontal
- Material: PP (Flange: Stainless steel: AISI304/EN1.4301)
| Product Specification | |
|---|---|
| Material | PP |
| Max Flow (l/s) | 0.58 |
| Minimum Height (mm) | 150 |
| Outlet Diameter (mm) | 50 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,38 |
-
Approval Information
For approval information, please refer to the below approval certificates.
