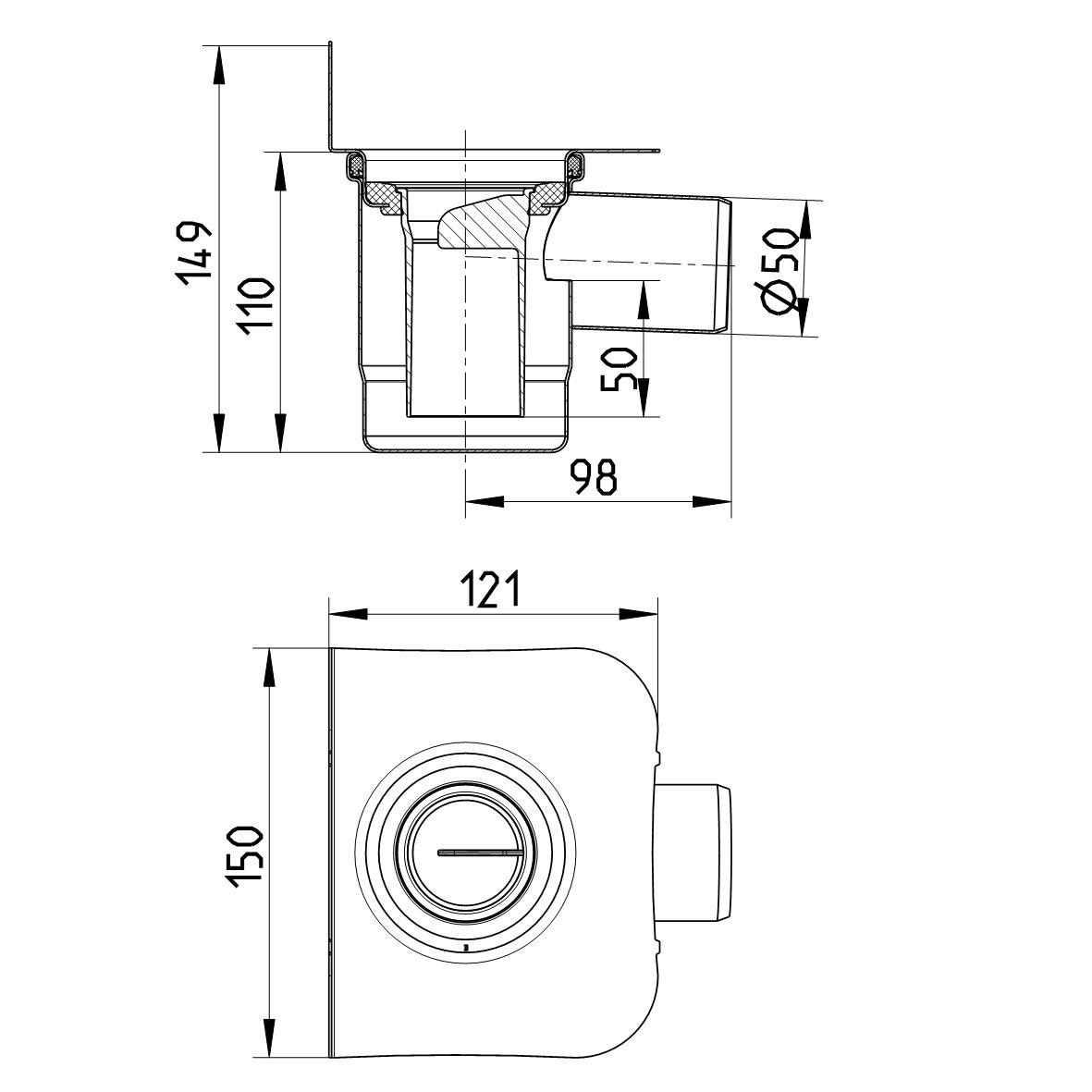

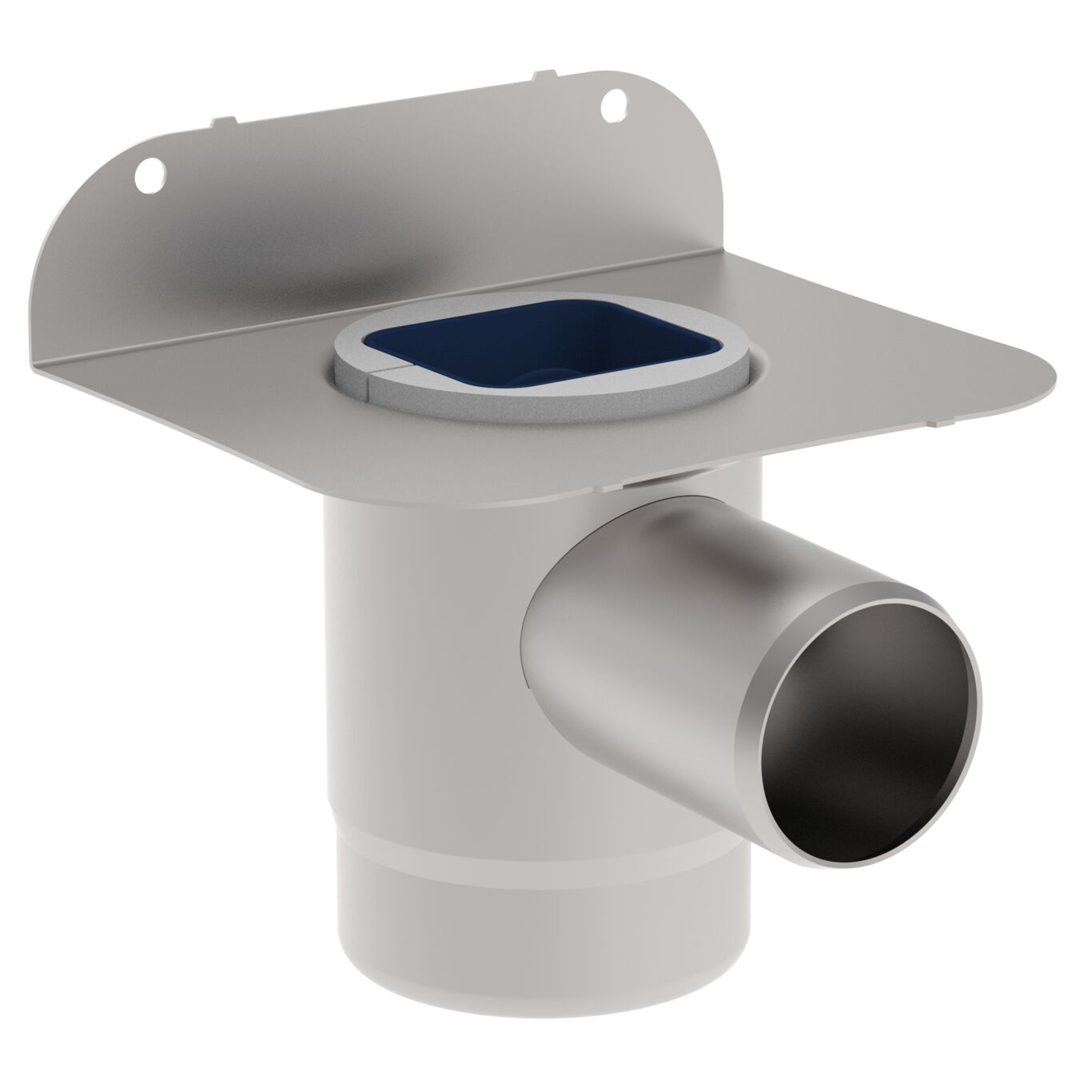

ART DECO TRAP - (513.000.050)
×
![]()
Part Of the Series: Water trap-Shower channel
Type no.: 513.000.050
EAN no.: 5705499141658
VVS no.: 155099150
RSK no.: 7110832
ART DECO TRAP
-To be built-in, no retro-fitting
-Liquid membrane
-Outlet: Ø50mm, Horizontal
-Material: Stainless Steel AISI304/EN1.4301
-Dip-Pipe Material: PP
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.64 |
| Minimum Height (mm) | 150 |
| Outlet Diameter (mm) | 50 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,61 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
