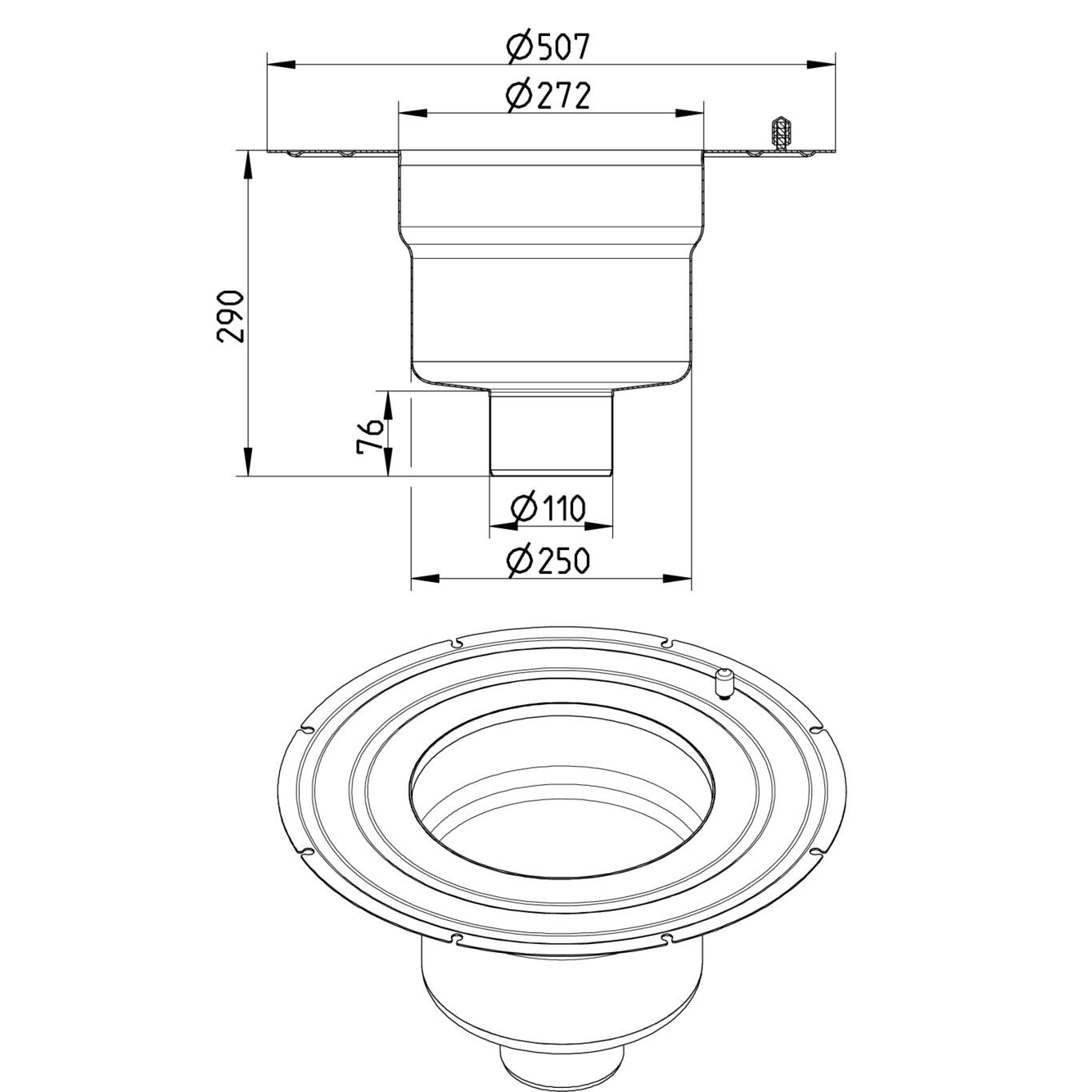

LOWER PART - (774.003.110)
×
![]()
Part Of the Series: Lower part-250
Type no.: 774.003.110
EAN no.: 5705499111941
NRF no.: 3396339
LVI no.: 3303793
LOWER PART
-Liquid membrane flange
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 290 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Weight (kg) | 5,72 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
