HYGIENICPRO INDUSTRIAL DRAIN, MEDIUM - (756.503.110)
×
![]()
Part Of the Series: Drain-No membrane-305
Type no.: 756.503.110
EAN no.: 5705499137842
VVS no.: 221803102
LVI no.: 3305606
Size: Ø305

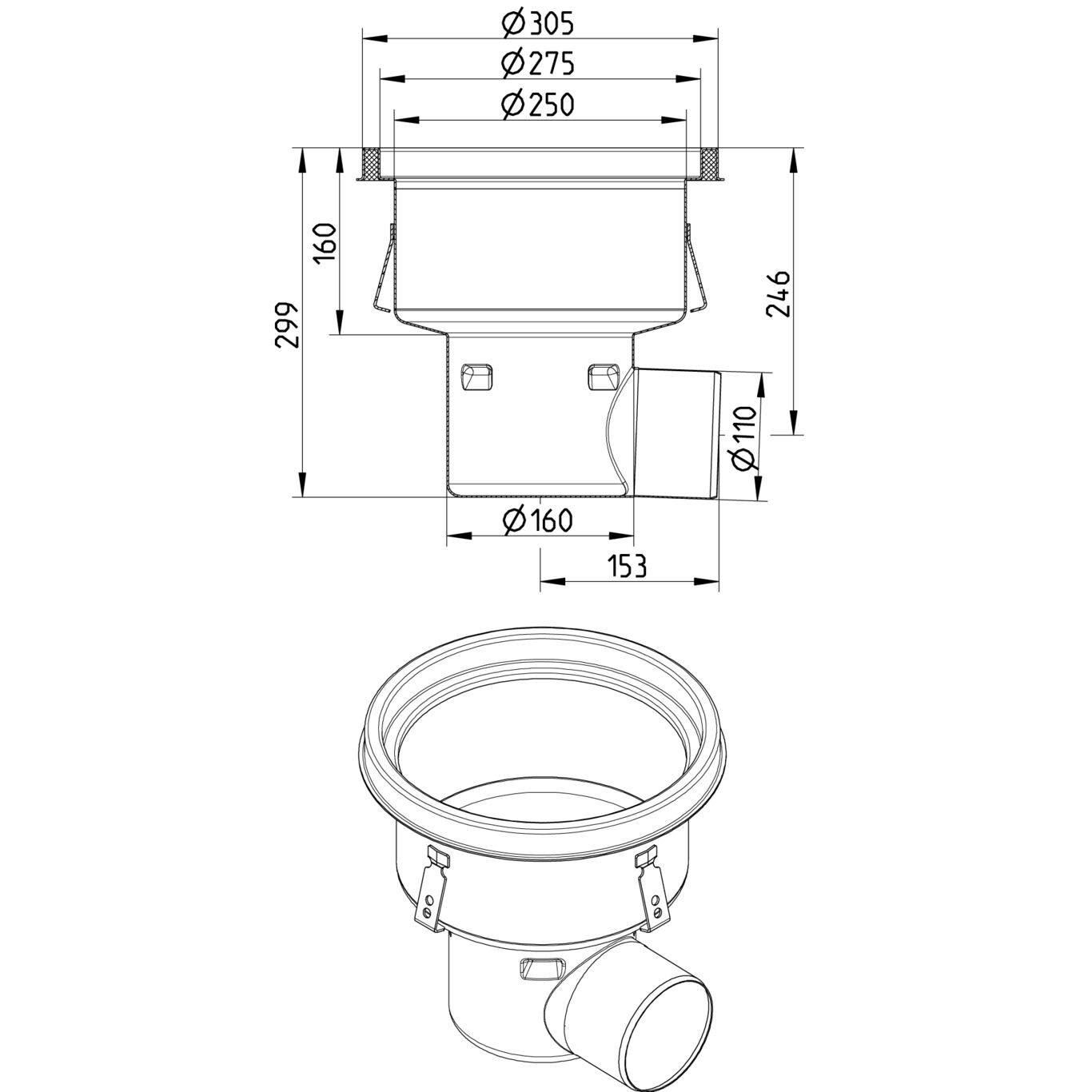

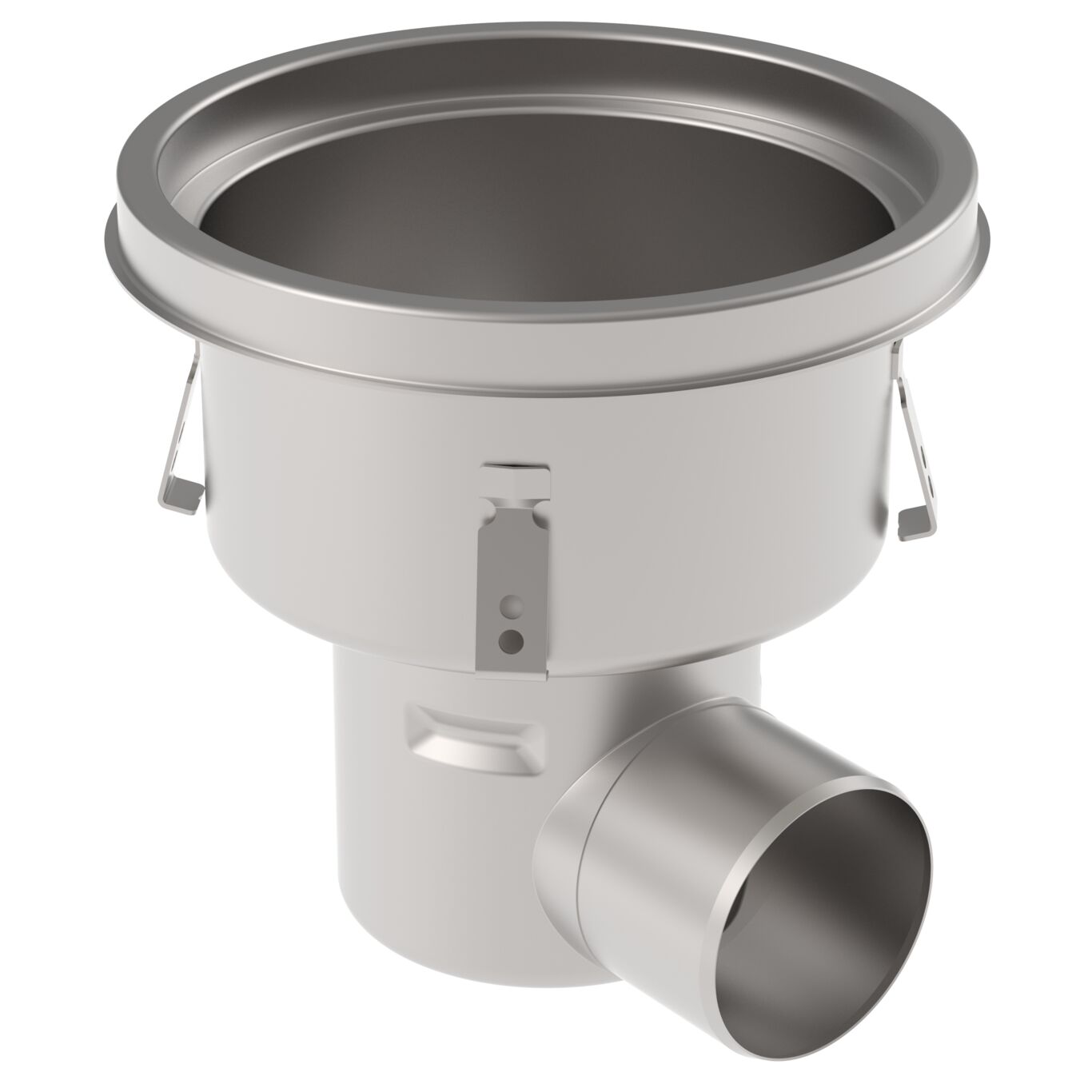

HYGIENICPRO INDUSTRIAL DRAIN, MEDIUM
-Floor: concrete, tiled and resin
-No membrane, frame: Ø305mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 299 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø305 |
| Weight (kg) | 4,37 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
