KITCHEN CHANNEL 500x800 - (662GH008-15)

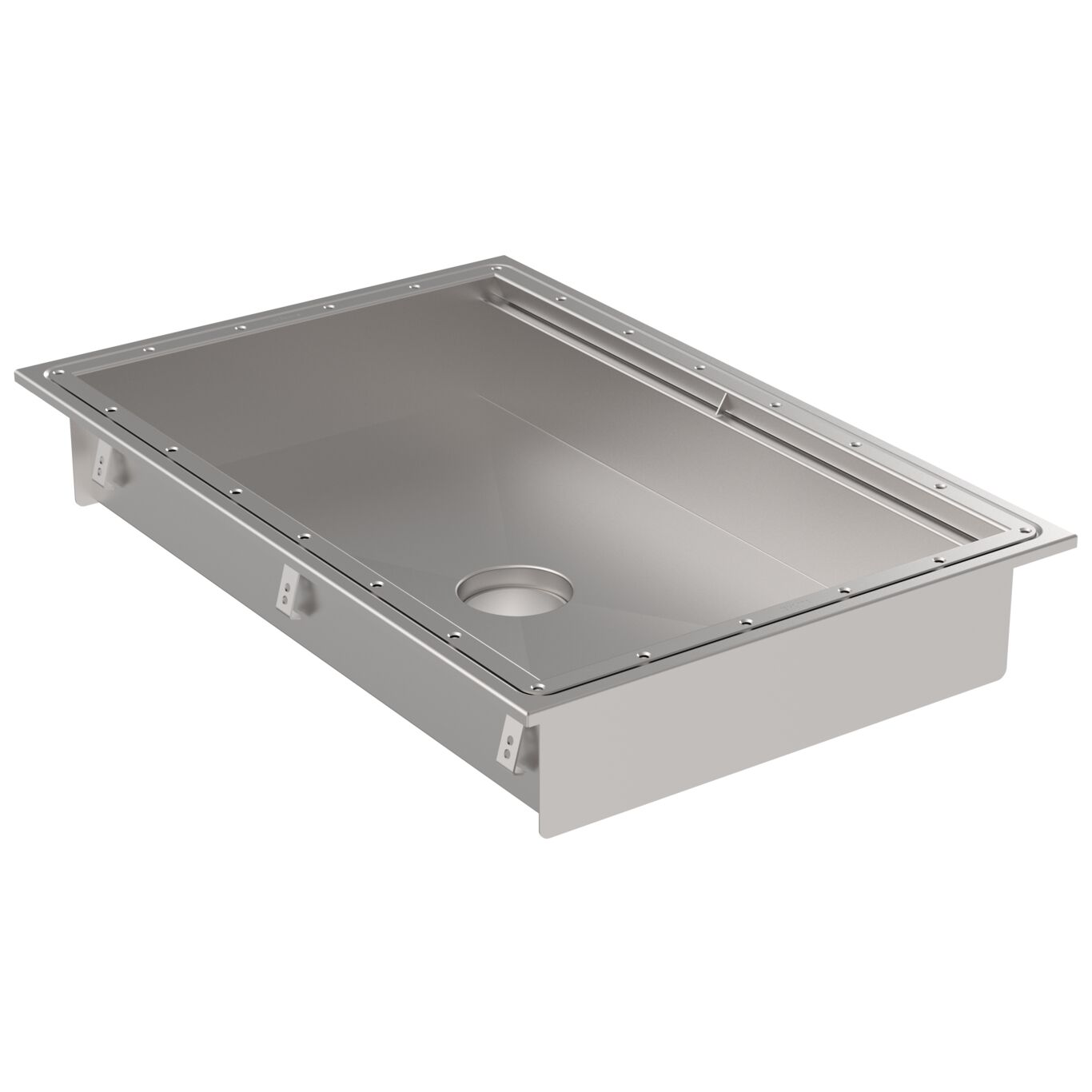

Product Image - Kitchen channel-Vinyl

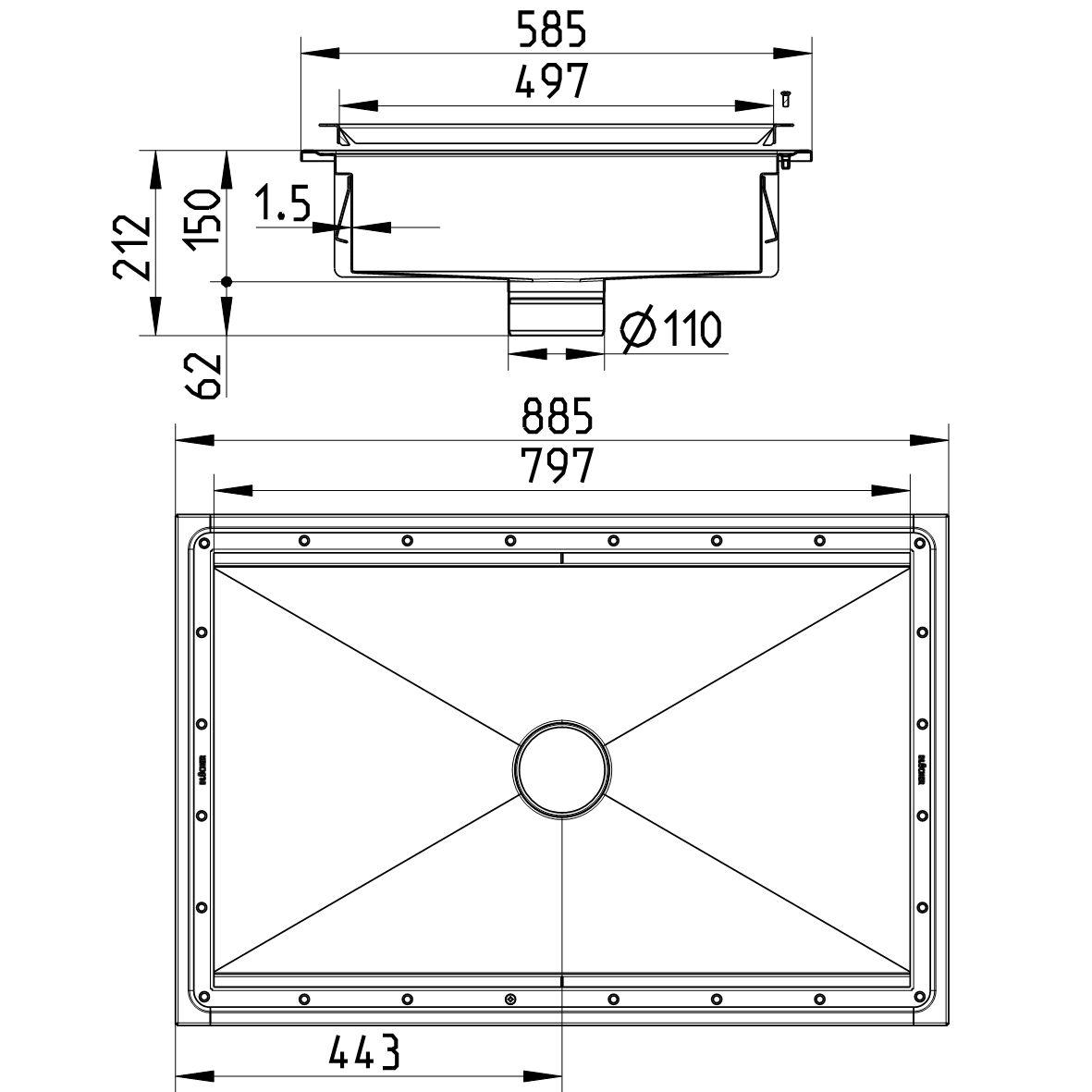

Line Drawing - Kitchen channel-Vinyl
×

Part Of the Series: Kitchen channel-Vinyl

Type no.: 662GH008-15

EAN no.: 5705499134537

Size: 500x800

KITCHEN CHANNEL 500x800
-Floor: vinyl
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301

Product Specification
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 211
Outlet Diameter (mm) 110
Outlet Direction Vertical
Shape Rectangular
Size (mm) 500x800
Weight (kg) 12,61
