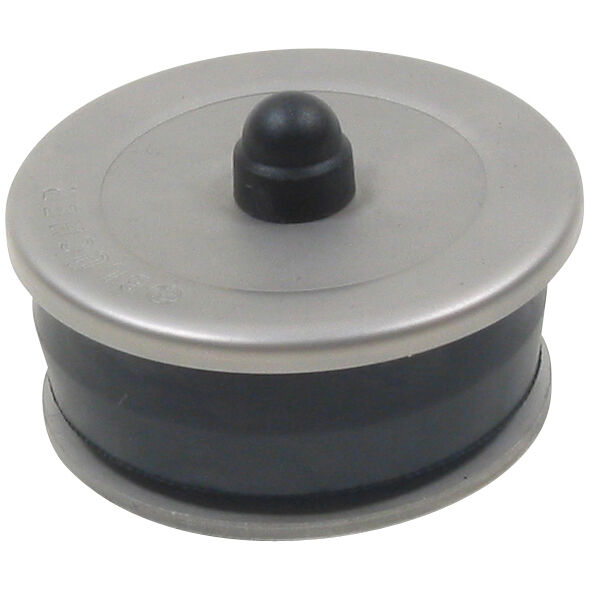

SOCKET PLUG - (844.100.075 S)
×
![]()
Part Of the Series: Socket plug
Type no.: 844.100.075 S
EAN no.: 5705499411409
VVS no.: 160264375
RSK no.: 1550352
NRF no.: 2171165
LVI no.: 0253238

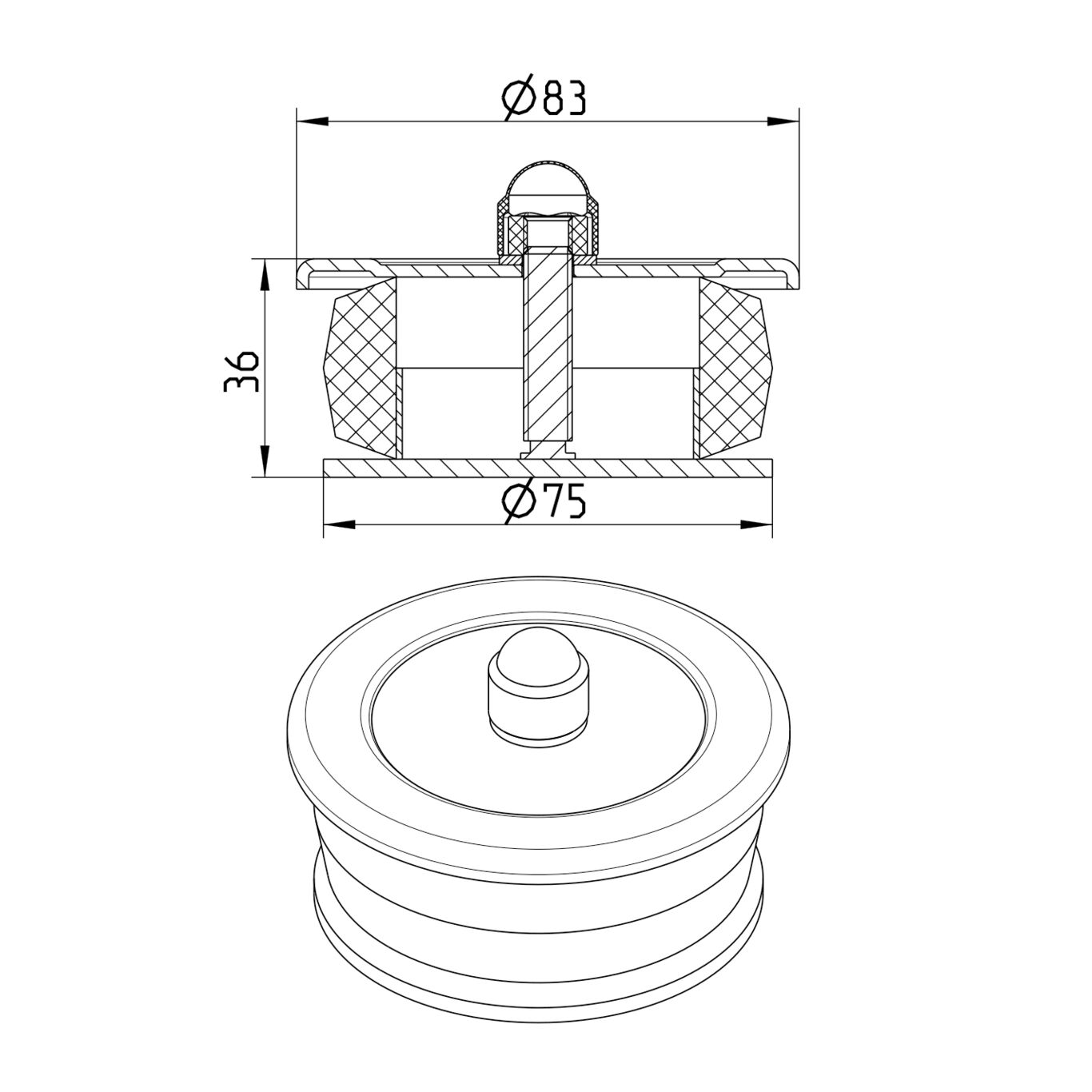

SOCKET PLUG
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 36 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
TÜRK LOYDU - 25041616077231247
US - IAPMO File No.3247-EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 Achilles Certificate - 46702 UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings
